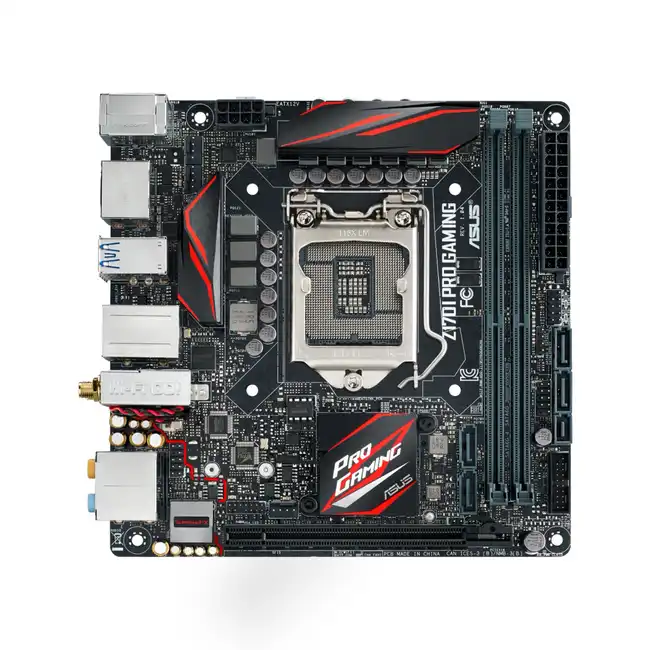

Материнская плата Asus Z170I PRO GAMING (Mini-iTX, LGA 1151)

Intel® Socket 1151 for 6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Intel® Z170

2 x DIMM, Max. 32Гб, DDR4 3400(O.C.)/3333(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

1 x PCIe 3.0/2.0 x16

Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*1
2 x SATA 6Gb/s port(s)
Supports Intel® Smart Response Technology*2

Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
Anti-surge LANGuard

Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Support ASUS Wi-Fi Go! Utility

Bluetooth V4.1

SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 115 dB SNR stereo playback output
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II

ASMedia® USB 3.1 controller :
2 x USB 3.1 Gen 2 port(s) (Type-A)
Intel® Z170 chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, (Blue), 2 at mid-board)
Intel® Z170 chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, (Black), 2 at mid-board)

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 2+, and Turbo App
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS TPU :
- Auto Tuning
- TurboV
- GPU Boost
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-DIMM
- ASUS Q-Connector
Media Streamer
RAMCache

Windows 7 32-битная/64-битная
Windows® 10 64-битная
Windows® 8.1 64-битная

1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 ((Red))Type-A
4 x USB 3.1 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
2 x Wi-Fi antenna port(s)

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x SATA Express connector: (Gray), Compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
2 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector

User's manual
ASUS Q-Shield
M.2 2242 mounting kit
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x 12 in 1 Cable Label (s)

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

WfM 2.0, DMI 3.0, WOL by PME, PXE

Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
