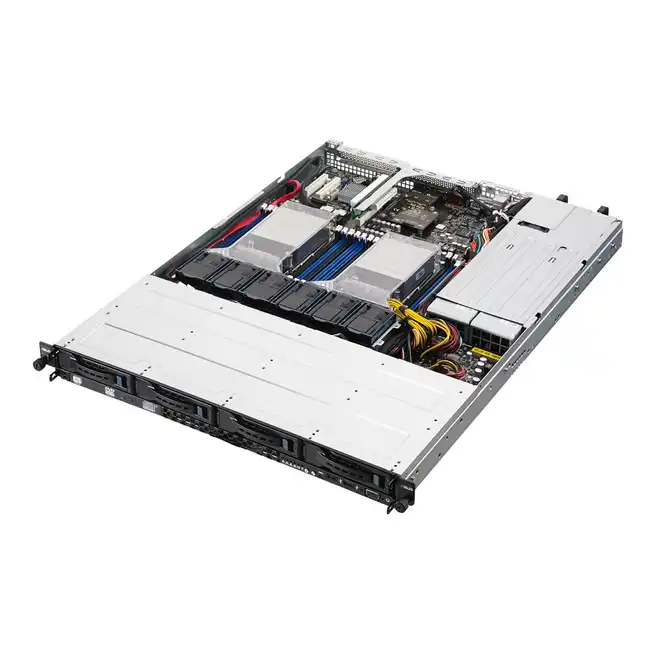

Серверная платформа Asus RS500-E8-RS4 V2

Характеристики:

• Процессор / Системная шина

  2 x Socket R3 (LGA 2011-3)
  Intel^® Xeon^® processor E5-2600 v4 product family (145W) *
  Intel^® Xeon^® processor E5-2600 v3 product family(145W)* Processor

  *Refer to www.asus.com for CPU Support list
  QPI 6.4 / 8.0 / 9.6 GT/s

• Generation

  E8

• Чипсeт

  Intel® C612 PCH

• Оперативная память

  Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
  Capacity : Maximum up to 1024GB LRDIMM
  Memory Type :
  DDR4 2400 /2133 /1866/1600 RDIMM
  DDR4 2400 /2133 /1866/1600 LRDIMM
  Memory Size :
  32GB, 16GB, 8GB, 4GB RDIMM
  64GB, 32GB LRDIMM
  * Refer to support page for more information
  * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.

• Слоты расширения

  2 + 1

  1 x PCI-E x16 (Gen3 x8 Link), FH, HL
  1 x PCI-E x8 (Gen3 x8 Link), FH, HL
  1 x OCP Mezzanine (Gen3 x8 link)*

  * Support for MCB-10G-2S (Dual Port 10 Gigabit/s Ethernet card) (optional)

• Хранилище данных

  SATA Controller : Intel® C612
  x

  9 x SATA3 6Gb/s ports (8 by 2 Mini-SAS Connector)
  1 x M.2 connector
  Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
  (Support Software RAID 0, 1, 5, 10 )
  SAS Controller :
  ASUS PIKE II 3008 8-port SAS HBA card(Опционально)
  ASUS PIKE II 3108 8-port SAS HW RAID card(Опционально)
  12G SAS Support

• Корпус для жесткого диска

  4 x Hot-swap 3.5" Storage Bays
  1 x M.2 (NGFF 2242)

• Auxiliary Storage FDD/CD/DVD

  1 x Slim-type Optical Drive Bay
  Options: No Device / DVD-RW

• Сеть

  2 x Intel® I210AT + 1 x Mgmt LAN

• Графика

  Aspeed AST2400 with 32MB

• Разъемы на передней панели

  2 x USB 2.0 ports
  1 x VGA port

• Rear I/O Ports

  2 x RJ-45 ports
  1 x RJ-45 Mgmt LAN port
  2 x USB 3.0 ports
  1 x VGA port
  1 x PS/2 KB/MS port

• Switch/LED

  Front Switch/LED:
  1 x Power switch/LED
  1 x Location switch/LED
  1 x Reset switch
  1 x HDD Access LED
  1 x Message LED
  LAN 1-4 LED
  * LAN3-4 for Mezzazine card use

  Rear Switch/LED:
  1 x Q-Code/Port 80 LED
  1 x Power switch/LED
  1 x Location LED
  1 x Message LED

• Поддержка ОС

  Windows Server 2008 R2

  *(Subject to change without any notice)
  Windows® Server 2016
  Windows® Server 2012 R2
  Windows® Server 2012
  RedHat® Enterprise Linux
  SuSE® Linux Enterprise Server
  CentOS
  Ubuntu
  VMware
  Citrix XenServer

• Администрирован-е

  ASWM Enterprise
  On-Board ASMB8-iKVM for KVM-over-IP

• Regulatory Compliance

  BSMI, CE, C-Tick, FCC(Class A)

• Размеры

  615mm x 444mm x 44mm
  24.21" x 17.48" x 1.73"

• Форм-фактор

  1U

• Вес

  Net Weight: 10.93 Kg
  Gross Weight: 17.18 Kg

• Электропитание

  1+1 Redundant 770W 80 PLUS Platinum Power Supply

  Rating: 100-127Vac/200-240Vac,10A/5A ,50-60Hz, Class I

• Экология

  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% ( Non condensing)
