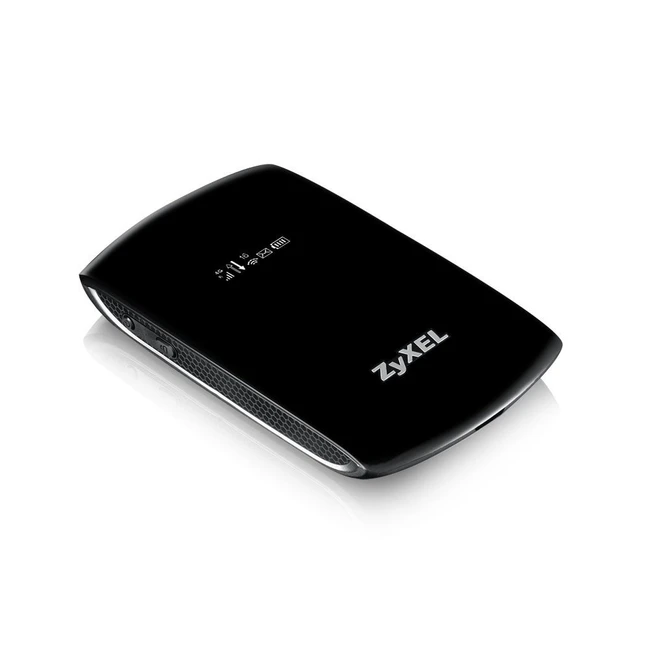

Маршрутизатор для дома Zyxel WAH7706 WAH7706-EU01V2F

ZYXEL WAH7706 - CAT6 LTE-A MIFI B1/3/7/8/20/28/38 + 3G/2G LTE Portable Router, multi-mode (LTE/3G/2G), CAT6 300/50Mbps LTE-Advanced with Carrier Aggregation (Qualcomm), LTE bands 1/3/7/8/20/28/38, 3G B1/8, GSM B3/8, 802.11 ac/n/a/g/ 2.4 & 5 GHz dual band & dual concurrent AC1200 (2x2), micro USB to USB cable

Wi-Fi AP Features

• 802.11 ac/n/a/g/b, 2.4 GHz & 5 GHz dual band
• Auto Channel Select (ACS)
• Wi-Fi enabled device #: Up to 32
• Hidden SSID
• Security modes: WPA/WPA2 PSK & WPA/WPA2 mixed mode
• AP power saving mode
• Access control: STA blacklist/white list
• Dual-SSID support
• Wi-Fi offload: AP-STA concurrency (optional)
• WPS: Pin and PBC, WPS2.0

System Features

• Web UI/multiple language supported
• SD card content sharing (via Wi-Fi)
• SMS/Quota/APN/PIN management
• Network selection
• Data usage/statistic
• DHCP server
• NAT
• IP firewall
• Proxy DNS
• VPN pass-through

Battery

• Removable lithium-ion polymer battery
• 3.8 V, 2800 mAh
• Up to 10 hours operating time (depends on network environment)
• Up to 300 hours standby time

USB Tethering System Supported

• Win 7, Win 8, Win 10
• MAC OS X10.9, 10.10
• Ubuntu 12.04 LTS, 14.04 LTS

Browser Client

• IE 8, IE 9, IE 10, IE 11, Edge
• Firefox latest 2 version (38, 39)
• Chrome latest 2 version (42, 43)
• Safari 7, 8

LTE Air Interface

• Standard compliant: 3GPP release 10 category 6
• Supported frequency: Band LTE 1/3/7/8/20/28/38 (40 option)
• Carrier aggregation support:B1+B8/B3+B20/B3+B7/B3+B8/ B7+B20/B3+B3/B7+B7/B3+B28/ B38+B38/(B40+B40)
• LTE antenna: 2 internal antennas
• FDD LTE peak data rate:
  • 300 Mbps DL within 40 MH zbandwidth (CA)
  • 50 Mbps UL within 20 MHz bandwidth
• TDD LTE peak data rate:
  • 224 Mbps DL within 40 MHz bandwidth (CA)
  • 10 Mbps UL within 20 MHz bandwidth

UMTS/EDGE/GPRS/GSM Air Interface

• Standard compliant: DC-HSDPA/HSPA+ complian
• Supported frequency:
  • HSPA+/UMTS 2100/900 MHz (band 1/8)
  • EDGE/GPRS/GSM 1800/900 MHz (band 3/8)
  • DC-HSPA+ downlink data rate up to 42 Mbps
  • HSUPA uplink data rate up to 5.76 Mbps
  • UMTS data rate up to 384 kbps
  • EDGE data rate up to 236.8 kbps
  • GPRS data rate up to 85.6 kbps

Hardware Interface

• USB 2.0 high speed for network access
• One UICC/USIM card slot
• 5 V/1.5 A Micro USB port bus power supply
• One Micro SD card slot up to 32 GB
• Reset button
• OLED display:
  • Service provider name
  • 2G/3G/4G network status
  • Roaming status
  • Signal strength
  • Battery status
  • Wi-Fi status

Physical Specifications

• Item dimensions (WxDxH):111 x 65.5 x 14.5 mm (4.37" x 2.58" x 0.57")
• Item weight: 115 g (0.25 lb.)
• Packing dimensions (WxDxH):150 x 106 x 42 mm (5.91" x 4.17" x 1.65")
• Packing weight: 215 g (0.47 lb.)
