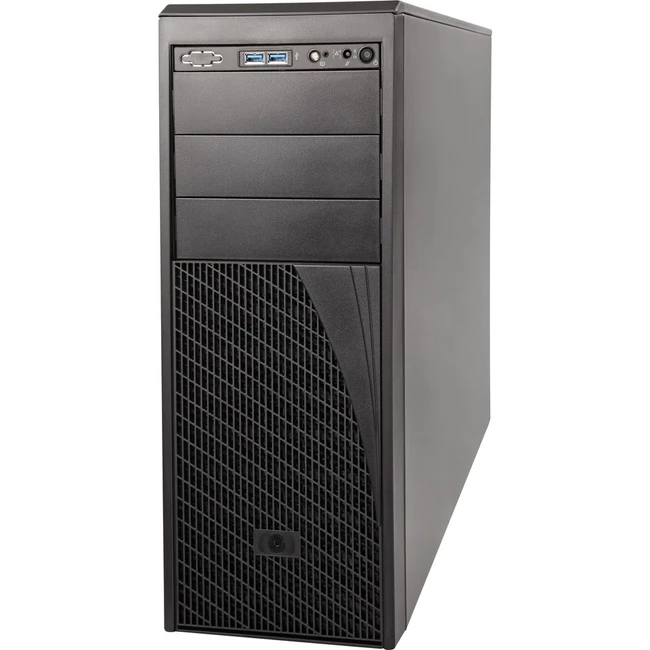

Intel® Server Chassis P4304XXMFEN2 4U pedestal chassis designed specifically for the Intel® Server Board S2600CW family supporting up to four 3.5 inch fixed drives. Optional drive upgrade kits available, 550Wt Single PS
Code Name
|
Union Peak
|
Launch Date
|
Q4'14
|
Status
|
Launched
|
Expected Discontinuance
|
Q1'18
|
Limited 3-year Warranty
|
Yes
|
Extended Warranty Available for Purchase (Select Countries)
|
Yes
|
Chassis Form Factor
|
4U Rack or Pedestal
|
Chassis Dimensions
|
17.24" x 24.9" x 6.81"
|
Target Market
|
Embedded
|
Power Supply
|
550 W
|
Power Supply Type
|
AC
|
# of Power Supply Included
|
1
|
Redundant Fans
|
No
|
Redundant Power Supported
|
No
|
Backplanes
|
Sold Separately
|
Included Items
|
(1) standard control panel (FXXFPANEL); (2) Fixed120mm system fans (FUPNHFANCPU); (1) 550W fixed power supply (FUP550SNRPS); (1) MiniSAS HD to 4 ports SATA 7 pins cable (AXXCBL450HD7S); (4) fixed 3.5 inch drive sleds (FUP4X35NHDK); (4) fixed power connectors; (1) processor/memory airduct (A4UCWDUCT); (1) fixed bezel (FUPBEZELFIX2)
|
Description
|
4U pedestal chassis designed specifically for the Intel® Server Board S2600CW family supporting up to four 3.5 inch fixed drives.
|
# of Front Drives Supported
|
4
|
Front Drive Form Factor
|
Fixed 2.5" or 3.5"
|
Max CPU Configuration
|
2
|
