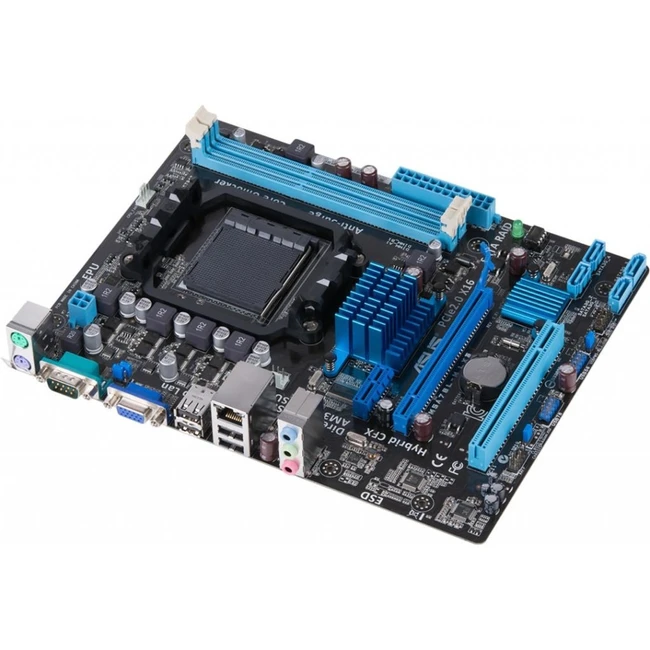

Материнская плата Asus M5A78L-M LX3

AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
Supports CPU up to 95 W
AMD Cool 'n' Quiet™ Technology

AMD 760G (780L)/SB710

2 x DIMM, Max. 16GB, DDR3 1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Up to 5.2 GT/s HyperTransport™ 3

Integrated ATI Radeon™ HD 3000 GPU
VGA output support : RGB port
- Supports RGB with max. resolution 2560 x 1440 @ 75 Hz
Maximum shared memory of 1024 MB
Hybrid CrossFireX™ Support *1
Supports DirectX 10

1 x PCIe 2.0 x16
1 x PCIe 2.0 x1
1 x PCI

AMD SB710 controller :
4 x SATA 3Gb/s port(s), (Blue)
Support Raid 0, 1, 10, JBOD

Qualcomm Atheros 8161/8171, 1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

Built-in Controller :
8 x USB 2.0 port(s) (4 at back panel, (Black), 4 at mid-board)

ASUS EPU :
- EPU
Core Unlocker
ASUS Exclusive Features :
- Anti-Surge
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x COM port(s)
3 x Audio jack(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)

16 Mb Flash ROM, AMI BIOS , PnP, DMI v2.0, WfM2.0, SM BIOS V2.7, ACPI V2.0a

Drivers
ASUS PC Probe II
ASUS Update
Anti-virus software (OEM version)

uATX Form Factor
9.6 inch x 7.4 inch ( 24.4 cm x 18.8 cm )
