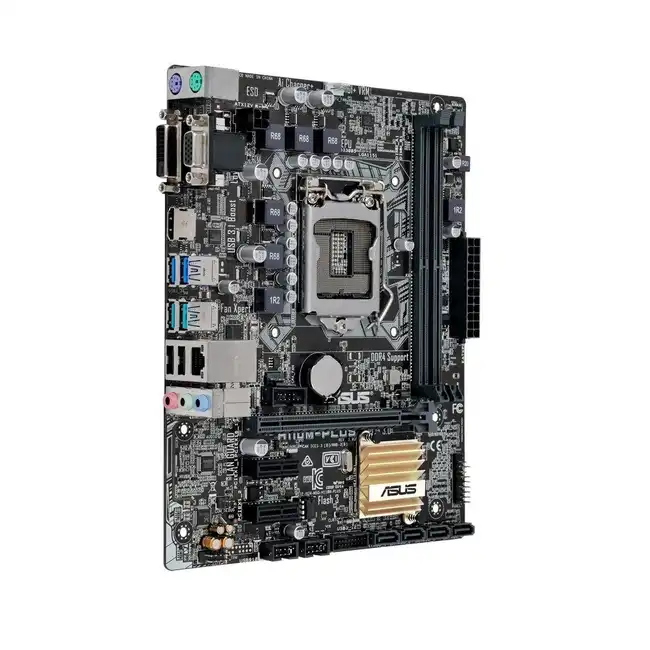

Материнская плата Asus H110M-PLUS

Intel® Socket 1151 for 7^th/6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Intel® H110

JMB361
2 x DIMM, Max. 32 ГБ, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 2 displays simultaneously

JMB361
1 x PCIe 3.0/2.0 x1 (x16 mode)
JMB361
2 x PCIe 2.0 x1

Intel® H110 Chipset :
4 x SATA 6Gb/s port(s), (Gray),
Intel® Rapid Storage Technology supports*1

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Intel® H110 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, (Blue), 2 at mid-board)
Intel® H110 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, (Black), 4 at mid-board)
ASMedia® USB 3.1 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue, Type-A)

ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 6 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- Anti-Surge
- Low EMI Solution
- ESD Guards
- USB 3.1 Boost
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM

Windows 7 32-битная/64-битная
Windows® 10 64-битная
Windows® 8.1 64-битная

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 ((Blue))
2 x USB 2.0
3 x Audio jack(s)

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

WfM 2.0, DMI 3.0, WOL by PME, PXE

uATX Form Factor
8.9 inch x 7.3 inch ( 22.62 cm x 18.55 cm )
