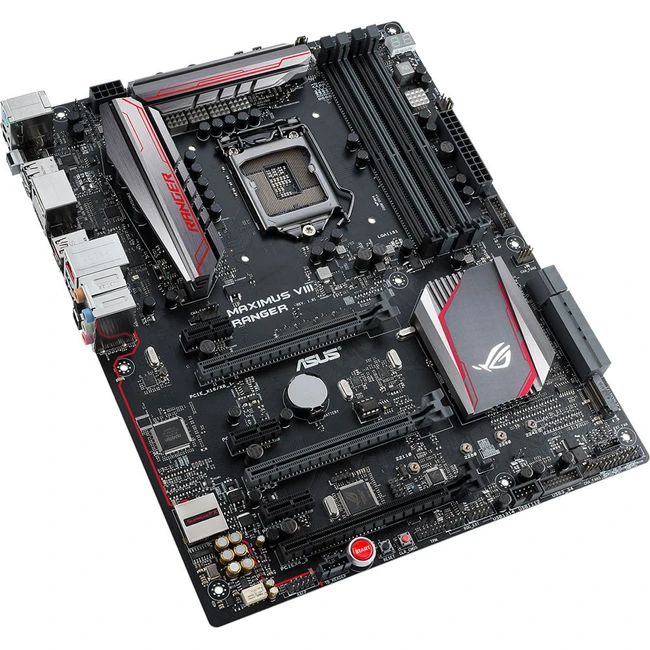

Материнская плата Asus MAXIMUS VIII RANGER (ATX, LGA 1151)

Intel® Socket 1151 for 6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Intel® Z170

4 x DIMM, Max. 64Гб, DDR4 3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology

2 x PCIe 3.0/2.0 x16 (x16 or dual x8, (Gray))
1 x PCIe 3.0/2.0 x16 (max at x4 mode, (Black))
3 x PCIe 3.0/2.0 x1 (x1 mode, (Black))

Intel® Z170 chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*1
6 x SATA 6Gb/s port(s), (Gray), , 4 ports from 2 x SATA Express
2 x SATA Express port, (Gray)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports*2
Supports Intel® Smart Response Technology*2

Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Anti-surge LANGuard

ROG SupremeFX 2015 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ESS® ES9023P DAC: dB SNR, dB THD+N (Max. kHz/ -bit)
- TI RC4580 2VRMS audio OP AMP(s)
Audio Feature :
- Gold-plated jacks
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SenseAmp
- Sonic Studio II
- Sonic Radar II

Intel® Z170 chipset :
6 x USB 3.1 Gen 1 port(s) (2 at back panel, (Blue), 4 at mid-board)
Intel® Z170 chipset : *3
8 x USB 2.0 port(s) (4 at back panel, (Black), 4 at mid-board)
ASMedia® USB 3.1 controller :
1 x USB 3.1 Gen 2 port(s) (1 at back panel, (Black), USB Type-C^TM)
ASMedia® USB 3.1 controller :
1 x USB 3.1 Gen 2 port(s) (1 at back panel, (Red), Type-A)

Start Button
Reset Button
LN2 Mode
Mem TweakIt
KeyBot II
- One-click Overclocking
- X.M.P.
- DirectKey
- ClrCMOS
- Power On
UEFI BIOS features :
- O.C. Profile
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
Extreme Tweaker

OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
- HyStream
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
RAMCache

Windows 7 32bit/64bit
Windows® 10 64bit
Windows® 8.1 64bit

1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 ((Black))USB Type-C^TM
1 x USB 3.1 Gen 2 ((Red))Type-A
2 x USB 3.1 Gen 1 ((Blue))
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)

1 x AAFP connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA Express connector: (Gray), Compatible with 4 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
2 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Q-Connector)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x Water Pump header (4-pin)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x 14-1 pin TPM connector

User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x SLI bridge(s)
1 x Q-connector(s) (1 in 1)
1 x 12 in 1 ROG Cable Label(s)
ROG Fan Label
1 x ROG Door Hanger(s)

1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.

WfM2.0, DMI3.0, WOL by PME, PXE

Drivers
ROG GameFirst technology
ROG RAMDisk
ROG RAMCache
ROG CPU-Z
ROG Mem TweakIt
Overwolf
Keybot II
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
ASUS Utilities

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
